Installation

To install energym, follow these steps:

  • First, it is recommended to create a virtual environment. You can do so by:

$ sudo apt-get install python-virtualenv virtualenv
$ virtualenv env_energym --python=python3.7
$ source env_energym/bin/activate

  • Then, clone this repository using this command:

$ git clone https://github.com/jajimer/energym.git

Docker container

We include a Dockerfile for installing all dependencies and setting up the image for running energym.

By default, Dockerfile will do pip install -e .[extras], if you want to install a diffetent setup, you will have to do in root repository:

$ docker build -t <tag_name> --build-arg ENERGYM_EXTRAS=[<setup_tag(s)>] .

For example, if you want a container with only documentation libaries and testing:

$ docker build -t example1/energym:latest --build-arg ENERGYM_EXTRAS=[doc,test] .

On the other hand, if you don’t want any extra library, it’s neccesary to write an empty value like this:

$ docker build -t example1/energym:latest --build-arg ENERGYM_EXTRAS= .

Note

If you use Visual Studio Code, by simply opening the root directory and clicking on the pop-up button “Reopen in container“, all the dependencies will be installed automatically and you will be able to run energym in an isolated environment.

Manual installation

If you prefer installing energym manually, follow the steps below:

1. Install EnergyPlus 9.5.0

Firstly, install EnergyPlus. Currently it has been update compability to 9.5.0 and it has been tested, but code may also work with other versions. Energym ensure this support:

Energym Version

EnergyPlus version

1.0.0

8.6.0

1.1.0

9.5.0

Other combination may works, but they don’t have been tested.

Follow the instructions here and install it for Linux (only Ubuntu is supported). Choose any location to install the software. Once installed, a folder called Energyplus-9-5-0 should appear in the selected location.

2. Install BCVTB software

Follow the instructions here for installing BCVTB software. Another option is to copy the bcvtb folder from this repository.

3. Set environment variables

Two environment variables must be set: EPLUS_PATH and BCVTB_PATH, with the locations where EnergyPlus and BCVTB are installed respectively.

4. Install the package

Finally, energym can be installed by running this command at the repo root folder:

$ pip install -e .

Extra libraries can be installed by typing pip install -e .[extras]. extras include all optional libraries which have been considered in this project such as testing, visualization, Deep Reinforcement Learning, monitoring , etc. It’s possible to select a subset of these libraries instead of ‘extras’ tag in which we select all optional libaries, for example:

$ pip install -e .[test,doc]

In order to check all our tag list, visit setup.py in Energym root repository.

In any case, they are not a requirement of the package.

Cloud Computing

1. First steps

You can run your experiments in cloud too. We are using Google Cloud in order to make it possible. Our team aim to set up a instances group (MIG) in which execute our Energym container.

Firstly, it is necessary that you have a Google Cloud account set up and SDK configured (auth, invoicing, project ID, etc). If you don’t have this, it is recommended to check their documentation. Secondly, It is important to have installed Docker in order to be able to manage these containers in Google Cloud.

You can link gcloud with docker accounts using the next (see authentication methods):

$ gcloud auth configure-docker

If you don’t want to have several problems in the future with the image build, we recommend you to allow permissions for google cloud build at the beginning (see this documentation). On the other hand, we are going to use specifically this services in Google Cloud Platform:

  • Container Registry and Artifact Registry.

  • Google Cloud builds

  • Google Cloud Compute Engine (VM and MIGs specifically)

Hence, you will have to allow this services into your Google account.

2. Use our container in Google Cloud Platform

Our Energym container is uploaded in container registry as a public one currently. You can use it locally:

$ docker run -it gcr.io/energym-314709/energym:latest

If you want to use it in a GCE VM, you can execute the next:

$ gcloud compute instances create-with-container energym \
    --container-image gcr.io/energym-314709/energym \
    --zone europe-west1-b \
    --container-privileged \
    --container-restart-policy never \
    --container-stdin \
    --container-tty \
    --boot-disk-size 20GB \
    --boot-disk-type pd-ssd \
    --machine-type n2-highcpu-8

Note

It is possible to change parameters in order to set up your own VM with your preferences (see create-with-container).

Warning

–boot-disk-size is really important, by default VM set 10GB and it isn’t enough at all for Energym container. This derive in a silence error for Google Cloud Build (and you would need to check logs, which incident is not clear).

3. Use your own container

Suppose you have this repository forked and you want to upload your own container on Google Cloud and to use it. You can use cloudbuild.yaml with our Dockerfile for this purpose:

steps:
  # Write in cache for quick updates
- name: 'gcr.io/google.com/cloudsdktool/cloud-sdk'
  entrypoint: 'bash'
  args: ['-c', 'docker pull gcr.io/${PROJECT_ID}/energym:latest || exit 0']
  # Build image (using cache if it's possible)
- name: 'gcr.io/google.com/cloudsdktool/cloud-sdk'
  entrypoint: 'docker'
  args: [
            'build',
            '-t', 'gcr.io/${PROJECT_ID}/energym:latest',
            '--cache-from', 'gcr.io/${PROJECT_ID}/energym:latest',
            '--build-arg', 'ENERGYM_EXTRAS=[DRL]',
            '.'
        ]

  # Push image built to container registry
- name: 'gcr.io/google.com/cloudsdktool/cloud-sdk'
  entrypoint: 'docker'
  args: ['push', 'gcr.io/${PROJECT_ID}/energym:latest']

  # This container is going to be public (Change command in other case)
- name: 'gcr.io/cloud-builders/gsutil'
  args: ['iam', 'ch', 'AllUsers:objectViewer', 'gs://artifacts.${PROJECT_ID}.appspot.com']
#Other options for execute build (not container)
options:
  diskSizeGb: '10'
  machineType: 'E2_HIGHCPU_8'
timeout: 86400s
images: ['gcr.io/${PROJECT_ID}/energym:latest']

This file does the next:

  1. Write in cache for quick updates (if a older container was uploaded already).

  2. Build image (using cache if it’s available)

  3. Push image built to Container Registry

  4. Make container public inner Container Registry.

There is an option section at the end of the file. Do not confuse this part with the virtual machine configuration. Google Cloud uses a helper VM to build everything mentioned above.

Warning

In the same way VM needs more memory, Google Cloud Build needs at least 10GB to work correctly. In other case it may fail.

Warning

If your local computer doesn’t have enough free space it might report the same error (there isn’t difference by Google cloud error manager), so be careful.

In order to execute cloudbuild.yaml, you have to do the next:

$ gcloud builds submit \
    --config ./cloudbuild.yaml .

–substitutions can be used in order to configure build parameters if they are needed.

Note

“.” in –config refers to Dockerfile, which is necessary to build container image (see build-config).

Note

In cloudbuild.yaml there is a variable named PROJECT_ID. However, it is not defined in substitutions. This is because it’s a predetermined variable by Google Cloud. When build begins “$PROJECT_ID” is set to current value in gcloud configuration (see substitutions-variables).

4. Create your VM or MIG

To create a VM that uses this container, here there is an example:

$ gcloud compute instances create-with-container energym \
    --container-image gcr.io/energym-314709/energym \
    --zone europe-west1-b \
    --container-privileged \
    --container-restart-policy never \
    --container-stdin \
    --container-tty \
    --boot-disk-size 20GB \
    --boot-disk-type pd-ssd \
    --machine-type n2-highcpu-8

Note

–container-restart-policy never it’s really important for a correct functionality.

Warning

If you decide enter in VM after create it immediately, it is possible container hasn’t been created yet. You can think that is an error, Google cloud should notify this.

To create a MIG, you need to create a machine set up template firstly, for example:

$ gcloud compute instance-templates create-with-container energym-template \
    --container-image gcr.io/energym-314709/energym \
    --container-privileged \
    --container-restart-policy never \
    --container-stdin \
    --container-tty \
    --boot-disk-size 20GB \
    --boot-disk-type pd-ssd \
    --machine-type n2-highcpu-8

Then, you can create a group-instances as large as you want:

$ gcloud compute instance-groups managed create example-group \
    --base-instance-name energym-vm \
    --size 3 \
    --template energym-template

5. Init your VM

Your virtual machine is ready! To connect you can use ssh (see gcloud-ssh):

$ gcloud compute ssh energym

Google Cloud use a Container-Optimized OS (see documentation) in VM. This SO have docker pre-installed with energym container.

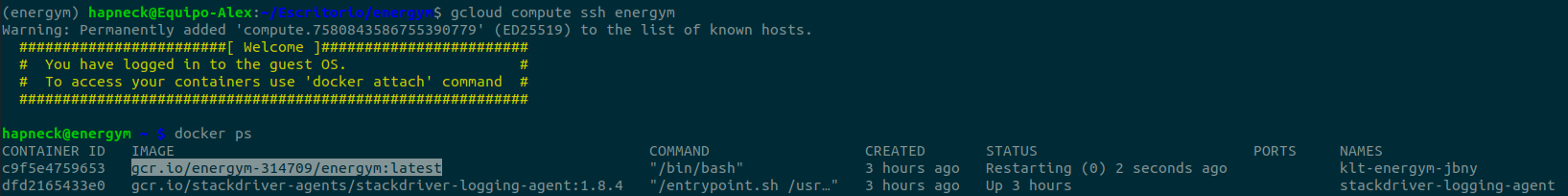

GCE VM containers list

To use this container in our machine you only have to do:

$ docker attach <container name or ID>
GCE VM container usage.

And now you can execute your own experiments in Google Cloud!
